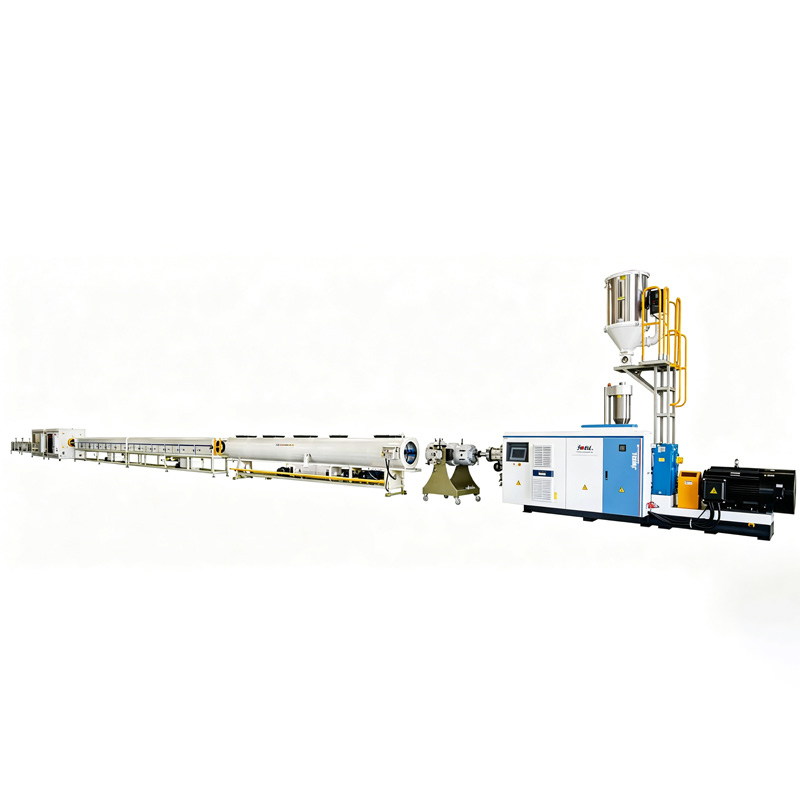

JWELL Multi-layer HDPE Pipe Co-extrusion System – For Municipal Water & Gas Pipes

JWELL has been dedicated to plastics extrusion equipment manufacturing for over 15 years. Today, we are officially launching our self-developed High-Speed Energy-Saving Polyolefin Pipe Extrusion Line to customers worldwide. This system integrates our core patented technologies developed in recent years – from high-efficiency screw geometry to intelligent energy-saving drives, from precision temperature control to remote operation and maintenance. Every design element stems from our deep understanding of the real pain points on pipe production floors. Our goal is straightforward: help you produce quality pipes that meet international standards with less electricity, faster speed, and more stable quality.

1. Complete Product Series Overview

Based on years of production experience and customer feedback, we divide the entire line into seven standard models, covering pipe diameters from Φ16 mm to Φ630 mm. For each model, the extruder, motor power, and output are strictly matched to ensure the best cost-performance within its respective range.

All data above are from our factory tests, covering PE, PP, PERT and other polyolefin materials, and have been validated through long-term continuous operation.

2. Our Core Technical Advantages

2.1 High-Speed Extrusion with Leading Output

We have designed a barrier-type screw with a mixing section specifically for the JWS series extruders. Even at high rotational speeds, plastication is thorough, melt temperature is uniform, and there is no degradation or surging. Take the JWG630 as an example – maximum output reaches 1050 kg/h, placing this machine among the top tier in its class. If you are aiming to maximize output per shift, this screw design is our answer.

2.2 Energy Savings – Visible Reductions in Electricity Costs

Electricity is the largest variable cost for pipe manufacturers. We have implemented three energy-saving measures on this line:

Optional permanent-magnet synchronous motor – 15–20% higher efficiency than conventional motors.

Standard frequency inverter on all models – automatically adjusts speed based on load, eliminating reactive losses.

Ceramic heater bands + stainless steel insulation covers on barrels – greatly reducing heat loss while also lowering cooling water consumption.

We have run the numbers for many customers: in regions with high electricity tariffs, the payback period for the energy-saving package is typically within 18 months. This is not marketing hype – it is real feedback from our existing customers.

2.3 Intelligent Control System – Easy Operation with Remote Support

Every line is equipped with a PLC-based centralized control + large touchscreen HMI. Operators can easily set and monitor:

Zone temperatures (PID control, accuracy ±1°C)

Screw speed and motor load

Melt pressure and vacuum level

Haul-off speed and cut length

More importantly, the system supports remote online diagnostics. Even if your plant is in Latin America or Africa, our engineers in China can connect to the machine to help troubleshoot and adjust processes – significantly reducing downtime waiting for on-site service.

2.4 Rugged and Durable – Backed by a 2-Year Warranty

Extruders are heavy-duty equipment, so we prioritize the material and heat treatment of barrels and screws. Nitrided steel barrels are standard, with bimetallic screws optional – these resist wear even when processing glass-filled or highly filled compounds. The gearbox uses heavy-duty bearings and is designed for 24/7 continuous production. Because we are confident in our quality, we offer a 2-year warranty on the main drive and gearbox.

3. How We Help You Select the Right Model (Selection Logic)

Many first-time customers ask, "Which model should I buy?" We have a mature selection process, which we share with you here:

Step 1: Define your pipe diameter range

Simply check the "Pipe Spec" column in the table to ensure it covers both your maximum and minimum diameters. For example, if you only produce small pipes from 20–63 mm, JWG63 or JWG110 is the most cost-effective choice; if you need to go up to 630 mm, the JWG630 is mandatory.

Step 2: Calculate your target daily output

Our output figures are based on standard PE material. If you require higher throughput, you can opt for a "high-output screw" on the same model or move up one model size. Our sales engineers will provide you with a detailed theoretical capacity comparison.

Step 3: Confirm local voltage and electricity tariff

We support 380V/50Hz, 415V/50Hz, 460V/60Hz, and other standards – just specify when ordering. If local power costs are high, we strongly recommend adding the energy-saving motor package – and we will show you the payback calculation.

Step 4: Provide your typical raw materials and formulation

If you use regrind, highly filled compounds, or special grades, our screw designers can adjust the flight geometry and compression ratio accordingly.

4. Five Most Common Concerns from Overseas Customers – We Address Them All

We export to over 60 countries across Europe, Southeast Asia, the Middle East, Africa, and beyond. The five most frequently asked questions are well covered:

4.1 Is pipe dimension and wall thickness stable?

We use multi-stage vacuum sizing + spray cooling, with a servo-driven haul-off unit that is vibration-free and slip-free. Wall thickness deviation and ovality meet stringent standards such as ISO 4427 and ASTM D3035. We can help you achieve pass rates on every batch.

4.2 How fast is material/color changeover?

We incorporate a quick-screen changer, and the hopper and feeding section are easy to disassemble and clean. Compared with older equipment, our cleaning and changeover time is reduced by an average of 40%. For factories that frequently switch orders, that means real production capacity.

4.3 Do you have international certifications?

All export machines come with CE certification, meeting EU safety standards. If your destination requires UL, CSA, or EAC certification, we can also customize the electrical system to local requirements – fully compliant.

5. What Pipes Can Our Line Produce?

Our extrusion lines are widely used for:

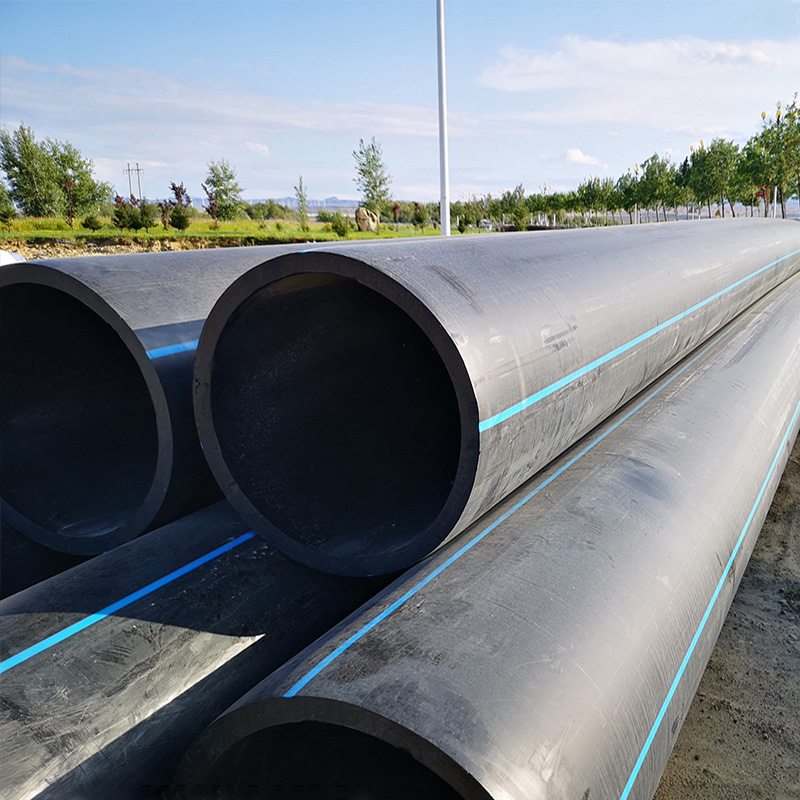

PE pipes for water supply and drainage (PE80, PE100, PERT)

PE pipes for gas (PE80, PE100)

PE/PP conduit pipes for power and telecommunications

PP pipes for chemical and industrial applications (PP-H, PP-B)

Small-diameter PE drip irrigation pipes for agriculture

In addition, if you need multi-layer co-extrusion (e.g., with an oxygen-barrier layer or reinforcement layer), we can add co-extrusion die heads and auxiliary equipment to form multi-layer composite pipes in one pass.

6. Frequently Asked Questions – We Answer Directly

Q: Can this line process PVC?

A: Our standard machines are designed specifically for polyolefins. If you do need to process PVC or PA, please let us know separately – our engineering department will evaluate whether a screw material and temperature control upgrade is required.

Q: Do you provide installation?

A: Yes. We offer turnkey service – from plant layout and foundation guidance, to equipment positioning, wiring, commissioning, and trial production, all with our engineers on site.

Q: How often do the screw and barrel need replacement?

A: With proper maintenance and processing pure PE, they typically last 5–8 years without replacement. We provide a routine inspection checklist with the machine – regular cleaning significantly extends service life.

Q: Can I upgrade later if I want to expand capacity?

A: Absolutely. Many of our existing customers choose to replace their screw set with our high-output version, or upgrade the control system, after 3–5 years – at a much lower cost than buying a new machine.

Q: Do you have actual data on energy savings?

A: Yes. We commissioned third-party comparative tests. Compared with a European brand of similar capacity, our line saves an average of 12–18% electricity; compared with conventional domestic machines, savings are 20–25%. We can provide specific data for your selected model and material upon request.

7. Why Do Customers in Over 60 Countries Choose JWELL?

Because we don't just sell machines – we sell long-term production security:

Core components made in-house: Screws, barrels, gearboxes, and dies are all produced in our own factories – quality fully controlled from start to finish.

30+ patents: We introduce new improvements every year – not copying old drawings, but truly solving production pain points.

Flexible commercial terms: We accept L/C, T/T, and installment payments; free material trials are available for customers.

Global service network: We have service centers or agents in 12 countries – emergency support can be dispatched locally.

We know that competition in the pipe industry is getting fiercer. You need a line that saves electricity, reduces scrap, and shortens delivery times – and that is exactly what JWELL does best.

8. How to Get Your Customized Proposal

If you are planning a new workshop or retrofitting an existing line, please send us the following information:

Target pipe diameter range and wall thickness requirements

Target hourly output (kg/h)

Main raw material types and whether regrind is used

Available workshop area and existing power supply capacity

Expected delivery timeframe and budget range

Our technical sales team will provide a complete proposal within 24 hours, including:

Recommended model and standard configuration list

Estimated power consumption and per-ton cost analysis

Workshop layout drawing (with utility connection requirements)

Quotation, payment terms, and warranty conditions

You are always welcome to schedule an online video factory tour or bring your own materials to our plant for a trial run. Our doors at JWELL are always open to every customer.
