CPP Cast Decorative Film Extrusion Line: The Machine That Puts the Pattern Into the Plastic

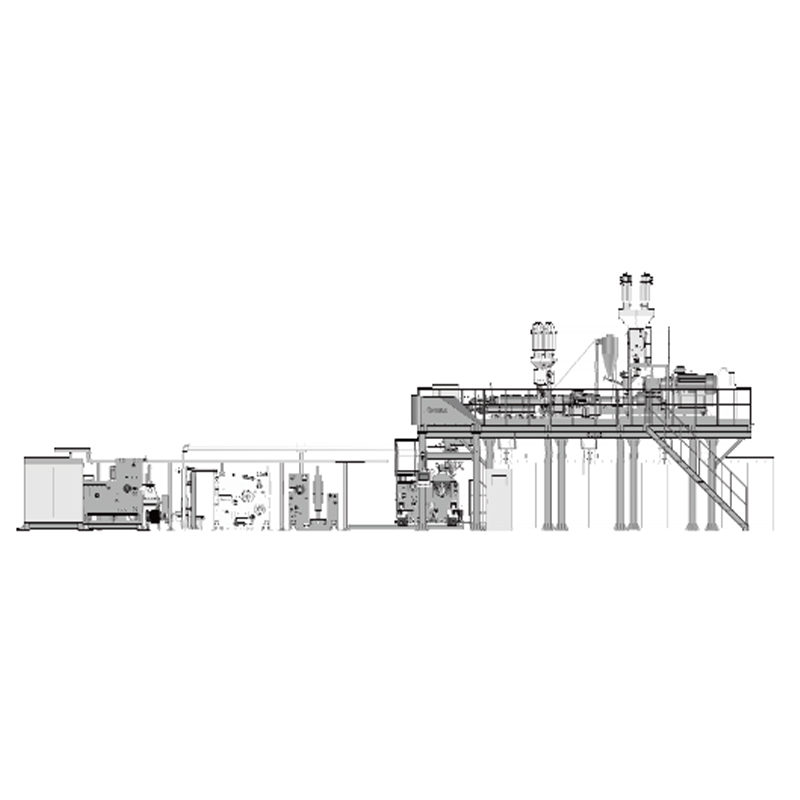

A decorative film covers a cabinet door, a wall panel, a furniture edge. The wood grain or the marble pattern is not printed on the surface. It is inside the film. The CPP cast decorative film extrusion line makes that film by melting polypropylene, casting it into a thin sheet, and embossing the pattern while the film is still hot. Pellets go in one end. A roll of patterned film comes off the other. For furniture, flooring, and interior panel makers, this line is where the surface begins.

The Melt Comes First

Polypropylene pellets, blended with color and additives, drop into the extruder hopper. The screw turns inside a heated barrel, melting and mixing the material. The melt temperature has to stay in a narrow band. Too hot and the polymer degrades and the color shifts. Too cold and the film does not form evenly.

A CPP cast decorative film extrusion line with a barrier screw melts the material uniformly. The melt then passes through a screen changer that catches contaminants before they reach the die. The flat die spreads the melt into a thin sheet. The die lip bolts adjust the thickness across the web.

The Chill Roll Sets the Surface

The molten sheet drops onto a polished chill roll. The roll is cooled with water and the film solidifies on contact. The surface of the chill roll transfers to the back side of the film. A mirror-polished roll gives a glossy back. A matte roll gives a non-reflective back.

The chill roll temperature and speed decide the crystallinity of the film. That in turn decides how the film behaves when it is embossed and later laminated. A CPP cast decorative film extrusion line with tight chill roll control produces film that lies flat and takes the pattern evenly.

The Emboss Is the Pattern

From the chill roll, the film moves to the embossing station. The film is still hot enough to take a permanent impression. An engraved steel roller presses the pattern into the surface. Wood grain, leather texture, geometric lines.

The timing is everything. Too hot and the pattern smears. Too cold and the pattern does not take. A CPP cast decorative film extrusion line positions the embossing roller at the exact point in the cooling curve where the film is soft enough to form and cool enough to hold.

The embossing roller is chrome-plated and precision-engraved. Quick-change systems let the operator switch patterns without tearing down the line. One shift runs wood grain. The next runs a matte solid.

Here is what a CPP cast decorative film extrusion line needs to deliver:

• Barrier screw extruder with tight melt temperature control
• Automatic screen changer for continuous operation
• Flat die with automatic thickness control
• Chill roll with controlled temperature and surface finish
• Chrome-engraved embossing roller with quick-change capability
• Tension-controlled winding

Color and Pattern Are the Same Thing

The pattern is not printed. It is formed by the embossing roller and the color in the melt. A registered emboss lines the texture up with the color variation so the grain lines follow the color swirls. That registration is what makes a vinyl plank look like wood instead of a photograph of wood.

Winding Without Stretching

The film is thin and stretches easily. The winder has to maintain tension without pulling the film out of shape. A CPP cast decorative film extrusion line with automatic tension control produces rolls that unwind smoothly at the laminating stage.

A CPP cast decorative film extrusion line turns polypropylene pellets into surfaces that look like wood, stone, and metal. The melt is cast. The pattern is pressed. The film is wound. Choose a line that controls the melt, the chill, and the emboss. The film will look like the material it imitates.
