JWELL GAG / PET / PMMA / PP Decorative Film Extrusion Line:Use Parameters To Match Orders, Use Data To Reduce Total Cost Of Ownership

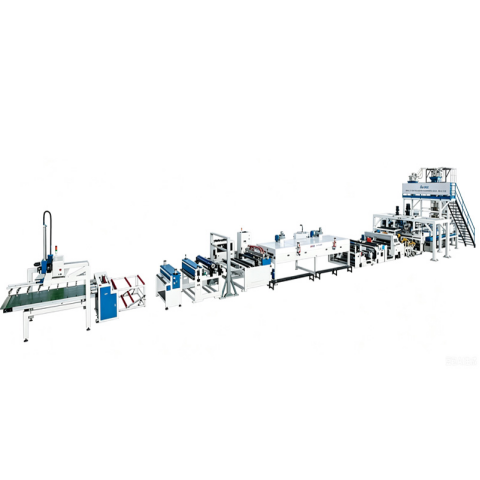

Against the backdrop of the decorative film industry continuing to evolve toward wider widths, thinner gauges, and multi-material composite directions, Jwell Machinery announces that it has completed a new round of product sorting and technical finalization for its GAG/PET/PMMA/PP decorative film co-extrusion production lines, officially establishing the two models JWP85/65-1500 and JWS120/65-1500 as the main lineup for B-end customers.

I. Product positioning: not a "universal machine", but a "matching machine"

After serving a large number of film product factories, Jwell found that what truly generates sunk costs for customers is precisely "model mismatch" – either using a large horse to pull a small cart, resulting in wasted electricity, or using a small horse to pull a large cart, causing delivery delays.

Therefore, Jwell has clearly distinguished the two production lines into two value propositions:

The product specifications of the two models are exactly the same, but the power and output capacity form a tiered configuration. This means that customers do not need to pay for excess power, nor do they need to worry about insufficient capacity – which model to choose depends entirely on the factory's order structure and average daily production schedule.

II. Product advantages: directly addressing four key nodes in factory operations

1. Multi-material compatibility, covering mainstream decorative film raw materials

Both production lines support production using four major raw material categories: PET, GAG, PMMA, and PP. Depending on the customer's primary material, targeted screw configurations and process calibration can be completed before delivery.

PET/PMMA high-transparency series: two-stage venting + barrier screw, effectively removing moisture and oligomers. Measured film light transmittance ≥92%, haze ≤1.5%.

GAG/PP weather-resistant series: enhanced shear homogenization and co-extrusion adapter design, interlayer adhesion (peel strength) ≥4.5 N/15mm, eliminating delamination and blistering.

This compatibility allows factories to avoid purchasing dedicated production lines for different materials, effectively reducing fixed asset investment.

2. Low specific energy consumption, directly compressing production costs

Under continuous stable production conditions, the JWP85/65-1500 has a measured specific power consumption of approximately 280 kWh per ton, and the JWS120/65-1500 has a measured specific power consumption of approximately 295 kWh per ton. For factories with an annual output of more than 3,000 tons, electricity costs alone can save about RMB 80,000–120,000 per year (estimated at an industrial electricity price of RMB 0.7/kWh).

3. Rapid product changeover, reducing downtime losses

Traditional production lines often require 1.5–2 hours for cross-material switching, during which purge materials and heating/waiting periods constitute non-value-added costs. Jwell equips these two models as standard with quick-opening hydraulic screen changers and screw zone temperature control systems. Same-material thickness changes take ≤20 minutes, and cross-material changes take ≤50 minutes, effectively improving the factory's overall equipment effectiveness.

4. Thickness precision control, reducing customer complaint risks

Non-uniform film thickness is the most common complaint reason in large-volume orders. Jwell's entire range is equipped as standard with automatic closed-loop thickness gauging systems, with 50 heating zones independently adjustable. The lateral thickness tolerance is stably controlled within ±2%, and this data can be directly written into the purchase contract acceptance clause.

III. Application fields: usage scenarios for three typical factory types

Application 1: Furniture decorative film production

Used for furniture veneers, edge banding, wall decorative panels, etc. PET and PMMA materials are dominant, with high requirements for film surface transparency and scratch resistance. The high-volume continuous production capacity of the JWP85/65-1500 matches the centralized procurement and large-batch delivery rhythm of the furniture industry.

Application 2: Automotive interior wrap film

Used for surface lamination of instrument panels, door panels, center consoles, and other interior trim parts. GAG and PP materials are widely used, with strict requirements for interlayer adhesion and weather resistance. Jwell's co-extrusion adapter ensures that the multi-layer structure does not delaminate, meeting the stringent durability test standards of the automotive industry.

Application 3: Electronic product protective film

Used for screen protective films, in-process protective films, etc. There is a zero-tolerance requirement for gel spots on the film surface. Jwell's dual venting system controls gel spots at ≤3 spots/m² (diameter ≤0.3mm), reaching the threshold for optical-grade applications.

IV. Customer value: three deliverables that Jwell provides to B-end factories

Deliverable 1: Selection assessment report

Before quoting, Jwell will issue an "Investment Payback Period Calculation Table" based on information provided by the customer, such as commonly used raw materials, average daily output, order change frequency, etc., to help customers confirm which model better suits their order structure before signing.

Deliverable 2: Material trial service

Jwell's Shanghai headquarters showroom is equipped with complete demonstration units for both production lines. Customers can bring their own raw materials for on-site trial runs and obtain actual operating condition energy consumption data and film sample test reports. Acceptance standards are based on actual measured data.

Deliverable 3: Complete line delivery and capacity guarantee

Jwell provides full integration and installation/commissioning services from extrusion, calendering, thickness measurement, corona treatment, to winding and slitting. After equipment delivery, Jwell's technical team stays on-site for accompanying production until stable and continuous qualified products are achieved. Key spare parts are kept in regular stock at domestic and 12 overseas service centers, minimizing downtime waiting periods to the greatest extent.

V. Supply status and how to obtain

At present, both models JWP85/65-1500 and JWS120/65-1500 have entered regular production schedules. The first batch of in-stock units can be shipped within 15 working days after contract signing.

If you would like to obtain targeted selection recommendations based on your factory's commonly used materials and average daily output, you may submit your raw material type and capacity requirements through Jwell's official website. The technical team will reply with your customized assessment report within 24 hours.
